QUICK COUPLERS
- Home
- All Products
- Construction Attachments
- Quick Couplers
RANGE 3

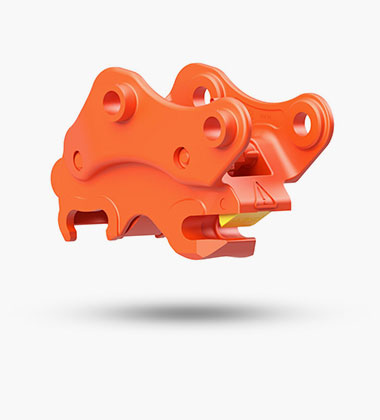

Mechanical Quick Coupler
| Technical Specifications |
| |
| Excavator Weight Class : |
4 -8 Ton |
| Operating Weight : |
87 kg |
| Front and Rear Pin diameter : |
50 & 55 mm |
| Attachments pick up range : |
348-350mm |
| Suitable Tata Hitachi Models : |
SHINRAI |
| |
RANGE 4
| Technical Specifications |
| |
| Excavator Weight Class : |
11 ~ 15 Ton |
| Operating Weight : |
180 kg |
| Front and Rear Pin diameter ( A & A ) : |
60 ~ 65 mm |
| Attachments pick up range ( B & C ) : |
345 – 415 mm |
| Suitable Tata Hitachi Models : |
EX130, ZAXIS140H |
| |
RANGE 6
| Technical Specifications |
| |
| Excavator Weight Class : |
19 ~ 23 Ton |
| Operating Weight : |
310 kg |
| Front and Rear Pin diameter ( A & A ) : |
80 ~ 80 mm |
| Attachments pick up range ( B & C ) : |
430 – 520 mm |
| Suitable Tata Hitachi Models : |
EX200LC, EX210LC, ZAXIS220LC, ZAXIS220LC–M |
| |
RANGE 6FAB
| Technical Specifications |
| |
| Excavator Weight Class : |
20 – 22 Ton |
| Operating Weight : |
337 kg |
| Front and Rear Pin diameter ( A & A ) : |
80 mm |
| Attachments pick up range ( B & C ) : |
430 – 520 mm |
| Suitable Tata Hitachi Models : |
EX200LC, EX210LC, ZAXIS220LC, ZAXIS220LC – M |
| |
RANGE 8
| Technical Specifications |
| |
| Excavator Weight Class : |
30 ~ 39 Ton |
| Operating Weight : |
560 kg |
| Front and Rear Pin diameter ( A & A ) : |
90 ~ 100 mm |
| Attachments pick up range ( B & C ) : |
482 – 602 mm |
| Suitable Tata Hitachi Models : |
ZAXIS370LCH |
| |
RANGE 9
| Technical Specifications |
| |
| Excavator Weight Class : |
40 ~ 49 Ton |
| Operating Weight : |
850 kg |
| Front and Rear Pin diameter ( A & A ) : |
100 ~ 110 mm |
| Attachments pick up range ( B & C ) : |
572 – 603 mm |
| Suitable Tata Hitachi Models : |
ZAXIS470H |
| |
RANGE 11
| Technical Specifications |
| |
| Excavator Weight Class : |
65 ~ 70 Ton |
| Operating Weight : |
1350 kg |
| Front and Rear Pin diameter ( A & A ) : |
120 ~ 130 mm |
| Attachments pick up range ( B & C ) : |
640 – 645 mm |
| Suitable Tata Hitachi Models : |
ZAXIS650H |
| |
RANGE 13
| Technical Specifications |
| |
| Excavator Weight Class : |
100 ~ 120 Ton |
| Operating Weight : |
2120 kg |
| Front and Rear Pin diameter ( A & A ) : |
120 ~ 130 mm |
| Attachments pick up range ( B & C ) : |
640 – 645 mm |
| Suitable Tata Hitachi Models : |
EX1200V |
| |
Disclaimer:
Specifications and features are subject to change without prior notice . The machine depicted may vary from the actual machine. Please contact our nearest office for latest specifications.
Accessories shown here are not part of the standard equipment. Performance of the machine may vary with site and operating conditions encountered.
