Rock Breakers (Alicon Series)
September 21, 2021 by admin
ROCK BREAKERS
( Alicon Series )
- Home
- Construction Attachments
- Rock Breakers (Alicon Series)
Alicon B30
| Technical Specifications |
| |
| Excavator Weight Class : |
2 ~ 4 Ton |
| Operating Weight : |
180 kg |
| Oil Flow : |
25 ~ 45 lpm |
| Operating Pressure : |
80-120 bar |
| Impact Blow Rate : |
600 ~ 1100 bpm |
| Chisel Diameter : |
53 mm |
| Chisel Length : |
570 mm |
| Suitable Tata Hitachi Models : |
TMX20 Neo, ZAXIS23U, ZAXIS33U |
| |

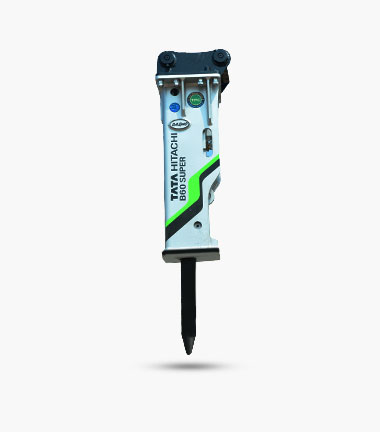

Alicon B60 Super
| Technical Specifications |
| |
| Excavator Weight Class : |
4 ~ 8 Ton |
| Operating Weight : |
375 kg |
| Oil Flow : |
35 ~ 70 lpm |
| Operating Pressure : |
100-140 bar |
| Impact Blow Rate : |
350 ~ 800 bpm |
| Impact Blow Rate (H/Speed ) : |
450 ~ 1000 bpm |
| Chisel Diameter : |
75 mm |
| Chisel Length : |
780 mm |
| Suitable Tata Hitachi Models : |
SHINRAI |
| |
Alicon B70 Super
| Technical Specifications |
| |
| Excavator Weight Class : |
6 ~ 8 Ton |
| Operating Weight : |
431 kg |
| Oil Flow : |
45 ~ 80 lpm |
| Operating Pressure : |
100-140 bar |
| Impact Blow Rate : |
350-900 bpm |
| Impact Blow Rate (H/Speed ) : |
450-1000 bpm |
| Chisel Diameter : |
78 mm |
| Chisel Length : |
806 mm |
| Suitable Tata Hitachi Models : |
EX70, SHINRAI |
| |
Alicon B360
| Technical Specifications |
| |
| Excavator Weight Class : |
28 ~ 40 Ton |
| Operating Weight : |
2937 kg |
| Oil Flow : |
180 ~ 250 lpm |
| Operating Pressure : |
140-180 bar |
| Impact Blow Rate : |
200 ~ 350 bpm |
| Impact Blow Rate (H/Speed ) : |
300 ~ 480 bpm |
| Chisel Diameter : |
155 mm |
| Chisel Length : |
1400 mm |
| Suitable Tata Hitachi Models : |
ZAXIS370LCH |
| |
Alicon B450
| Technical Specifications |
| |
| Excavator Weight Class : |
38 ~ 50 Ton |
| Operating Weight : |
3713 kg |
| Oil Flow : |
200 ~ 280 lpm |
| Operating Pressure : |
140-180 bar |
| Impact Blow Rate : |
200 ~ 300 bpm |
| Impact Blow Rate (H/Speed ) : |
300 ~ 450 bpm |
| Chisel Diameter : |
165 mm |
| Chisel Length : |
1650 mm |
| Suitable Tata Hitachi Models : |
ZAXIS370LCH, ZAXIS400MTH, ZAXIS470H |
| |
Alicon B650
| Technical Specifications |
| |
| Excavator Weight Class : |
42 ~ 81 Ton |
| Operating Weight : |
4380 kg |
| Oil Flow : |
280 ~ 400 lpm |
| Operating Pressure : |
150-190 bar |
| Impact Blow Rate : |
250 ~ 420 bpm |
| Impact Blow Rate (H/Speed ) : |
300 ~ 500 bpm |
| Chisel Diameter : |
180 mm |
| Chisel Length : |
1500 mm |
| Suitable Tata Hitachi Models : |
ZAXIS470H, ZAXIS650H |
| |
Alicon B850
| Technical Specifications |
| |
| Excavator Weight Class : |
55 ~ 100 Ton |
| Operating Weight : |
5625 kg |
| Oil Flow : |
320 ~ 450 lpm |
| Operating Pressure : |
150-190 bar |
| Impact Blow Rate : |
200-350 bpm |
| Impact Blow Rate (H/Speed ) : |
250-400 bpm |
| Chisel Diameter : |
200 mm |
| Chisel Length : |
1700 mm |
| Suitable Tata Hitachi Models : |
ZAXIS650H, ZAXIS8705G |
| |
Disclaimer:
Specifications and features are subject to change without prior notice . The machine depicted may vary from the actual machine. Please contact our nearest office for latest specifications.
Accessories shown here are not part of the standard equipment. Performance of the machine may vary with site and operating conditions encountered.
